12. Custom Credential Types¶

12.1. Content sourcing from collections¶

A "managed" credential type of kind=galaxy represents a content source for fetching collections defined in requirements.yml when project updates are run (e.g., galaxy.ansible.com, cloud.redhat.com, on-premise Automation Hub). This new type will represent a URL and (optional) authentication details necessary to construct the environment variables when a project update runs ansible-galaxy collection install as described in the Ansible documentation, Configuring the ansible-galaxy client. It has fields which map directly to the configuration options exposed to the Ansible Galaxy CLI, e.g., per-server. An endpoint in the API reflects an ordered list of these credentials at the Organization level:

/api/v2/organizations/N/galaxy_credentials/

Installations of the automation controller migrates existing Galaxy-oriented setting values in such a way that post-upgrade, proper credentials are created and attached to every Organization. After upgrading to the latest version , every organization that existed prior to upgrade now has a list of (one or more) "Galaxy" credentials associated with it.

Additionally, post-upgrade, these settings are not be visible (or editable) from the /api/v2/settings/jobs/ endpoint.

The automation controller should still continue to fetch roles directly from public Galaxy even if galaxy.ansible.com is not the first credential in the list for the Organization. The global "Galaxy" settings are no longer configured at the jobs level, but at the Organization level in the User Interface. The Organization's Add and Edit windows have an optional Credential lookup field for credentials of kind=galaxy.

It is very important to specify the order of these credentials as order sets precedence for the sync and lookup of the content. For more information, see Creating a New Organization. For detail on how to set up a project using collections, see Using Collections via Hub.

12.2. Backwards-Compatible API Considerations¶

Support for version 2 of the API (api/v2/) means a one-to-many relationship for Job Templates to credentials (including multi-cloud support). Credentials can be filtered using the v2 API:

$ curl "https://controller.example.org/api/v2/credentials/?credential_type__namespace=aws"

In the V2 CredentialType model, the relationships are defined as follows:

12.3. Content verification¶

Automation controller uses GNU Privacy Guard (GPG) to verify content. For more information, refer to The GNU Privacy Handbook.

12.4. Getting Started with Credential Types¶

Access the Credentials from clicking Credential Types from the left navigation bar. If no custom credential types have been created, the Credential Types view will not have any to display and will prompt you to add one:

If credential types have been created, this page displays a list of all existing and available Credential Types.

To view more information about a credential type, click on its name or the Edit () button from the Actions column.

Each credential type displays its own unique configurations in the Input Configuration field and the Injector Configuration field, if applicable. Both YAML and JSON formats are supported in the configuration fields.

12.5. Create a New Credential Type¶

To create a new credential type:

1. Click the Add button in the Credential Types screen.

2. Enter the appropriate details in the Name and Description field.

3. In the Input Configuration field, specify an input schema which defines a set of ordered fields for that type. The format can be in YAML or JSON, as shown:

YAML

fields:
  - type: string
    id: username
    label: Username
  - type: string
    id: password
    label: Password
    secret: true
required:
  - username
  - password

View more YAML examples at http://www.yaml.org/start.html.

JSON

{
"fields": [
  {
  "type": "string",
  "id": "username",
  "label": "Username"
  },
  {
  "secret": true,
  "type": "string",
  "id": "password",
  "label": "Password"
   }
  ],
 "required": ["username", "password"]
}

View more JSON examples at www.json.org.

The configuration in JSON format below show each field and how they are used:

{
  "fields": [{
    "id": "api_token",               # required - a unique name used to
                                     # reference the field value

    "label": "API Token",            # required - a unique label for the
                                     # field

    "help_text": "User-facing short text describing the field.",

    "type": ("string" | "boolean")   # defaults to 'string'

    "choices": ["A", "B", "C"]       # (only applicable to `type=string`)

    "format": "ssh_private_key"      # optional, can be used to enforce data
                                     # format validity for SSH private key
                                     # data (only applicable to `type=string`)

    "secret": true,                  # if true, the field value will be encrypted

    "multiline": false               # if true, the field should be rendered
                                     # as multi-line for input entry
                                     # (only applicable to `type=string`)
},{
    # field 2...
},{
    # field 3...
}],

"required": ["api_token"]            # optional; one or more fields can be marked as required
},

When type=string, fields can optionally specify multiple choice options:

{
  "fields": [{
      "id": "api_token",          # required - a unique name used to reference the field value
      "label": "API Token",       # required - a unique label for the field
      "type": "string",
      "choices": ["A", "B", "C"]
  }]
},

4. In the Injector Configuration field, enter environment variables or extra variables that specify the values a credential type can inject. The format can be in YAML or JSON (see examples in the previous step). The configuration in JSON format below show each field and how they are used:

{
  "file": {
      "template": "[mycloud]\ntoken={{ api_token }}"
  },
  "env": {
      "THIRD_PARTY_CLOUD_API_TOKEN": "{{ api_token }}"
  },
  "extra_vars": {
      "some_extra_var": "{{ username }}:{{ password }}"
  }
}

Credential Types can also generate temporary files to support .ini files or certificate/key data:

{
  "file": {
      "template": "[mycloud]\ntoken={{ api_token }}"
  },
  "env": {
      "MY_CLOUD_INI_FILE": "{{ tower.filename }}"
  }
}

In this example, the automation controller will write a temporary file that contains:

[mycloud]\ntoken=SOME_TOKEN_VALUE

The absolute file path to the generated file will be stored in an environment variable named MY_CLOUD_INI_FILE.

An example of referencing multiple files in a custom credential template is as follows:

Inputs

{
  "fields": [{
    "id": "cert",
    "label": "Certificate",
    "type": "string"
  },{
    "id": "key",
    "label": "Key",
    "type": "string"
  }]
}

Injectors

  {
    "file": {
      "template.cert_file": "[mycert]\n{{ cert }}",
      "template.key_file": "[mykey]\n{{ key }}"
  },
  "env": {
      "MY_CERT_INI_FILE": "{{ tower.filename.cert_file }}",
      "MY_KEY_INI_FILE": "{{ tower.filename.key_file }}"
  }
}

5. Click Save when done.

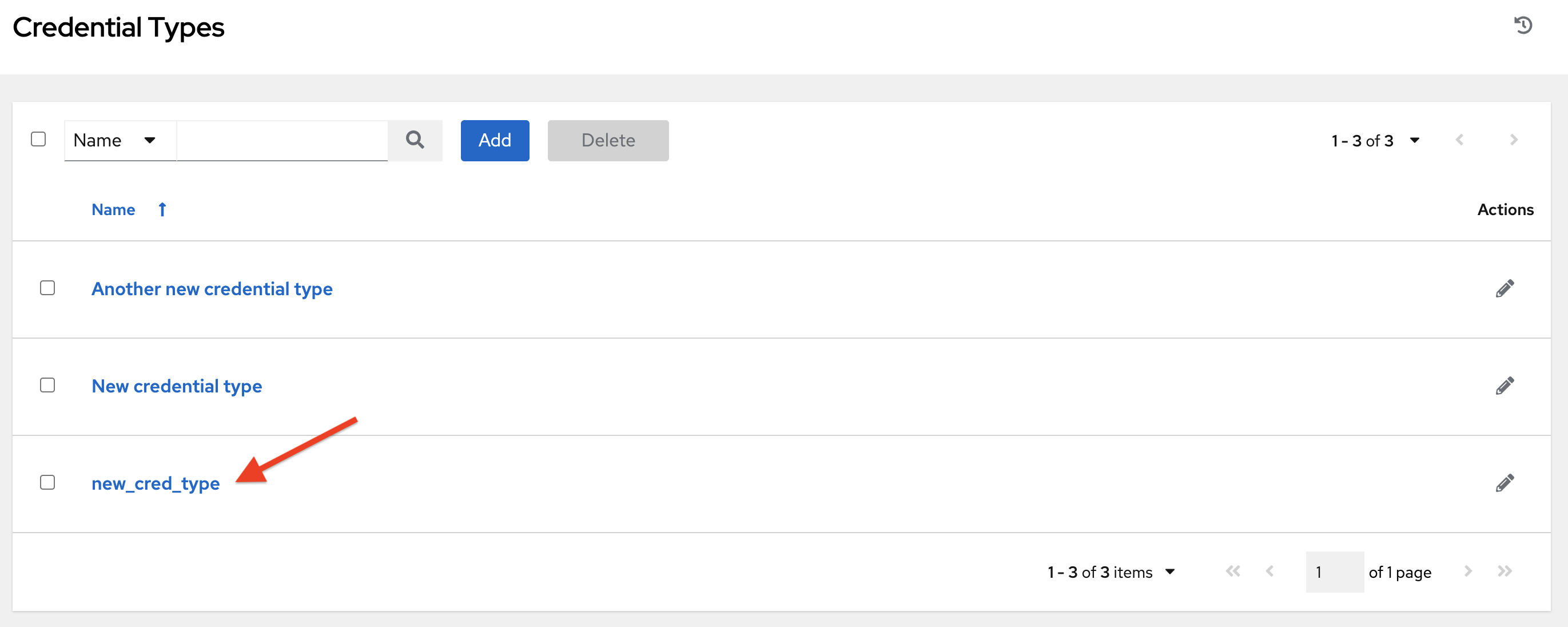

6. Scroll down to the bottom of the screen and your newly created credential type appears on the list of credential types:

Click to modify the credential type options under the Actions column.

注釈

In the Edit screen, you can modify the details or delete the credential. If the Delete button is grayed out, it is indication that the credential type that is being used by a credential, and you must delete the credential type from all the credentials that use it before you can delete it. Below is an example of such a message:

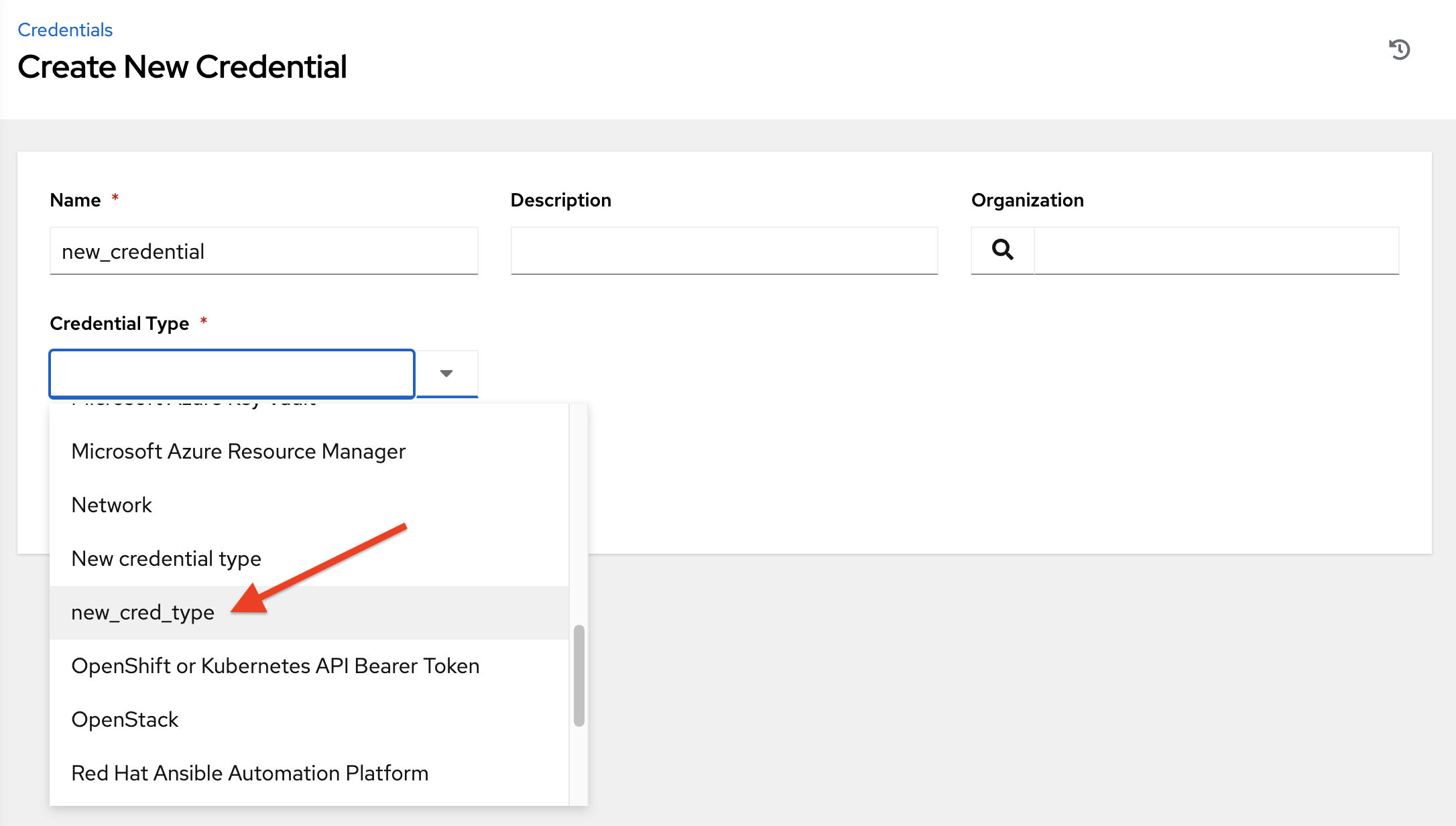

7. Verify that the newly created credential type can be selected from the Credential Type selection window when creating a new credential:

For details on how to create a new credential, see Credentials.
